Description

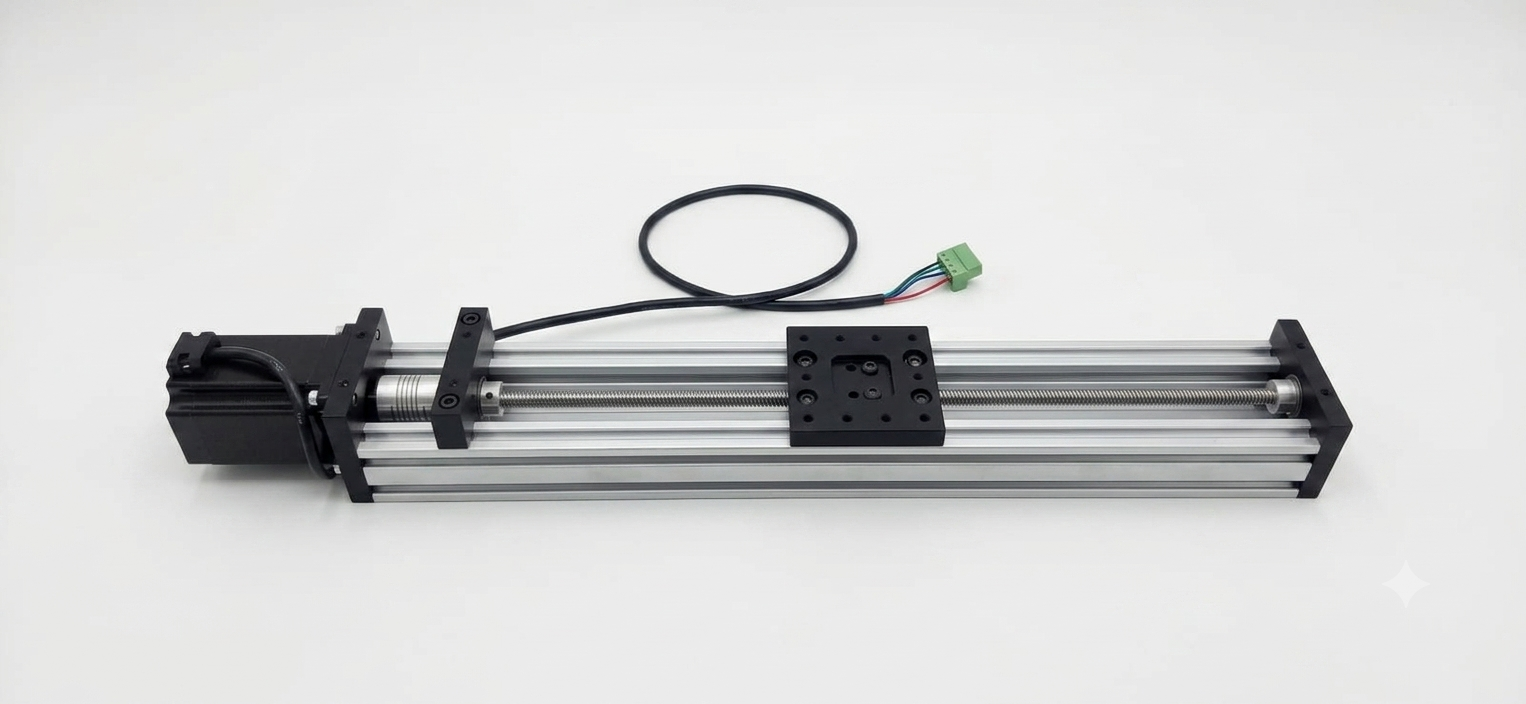

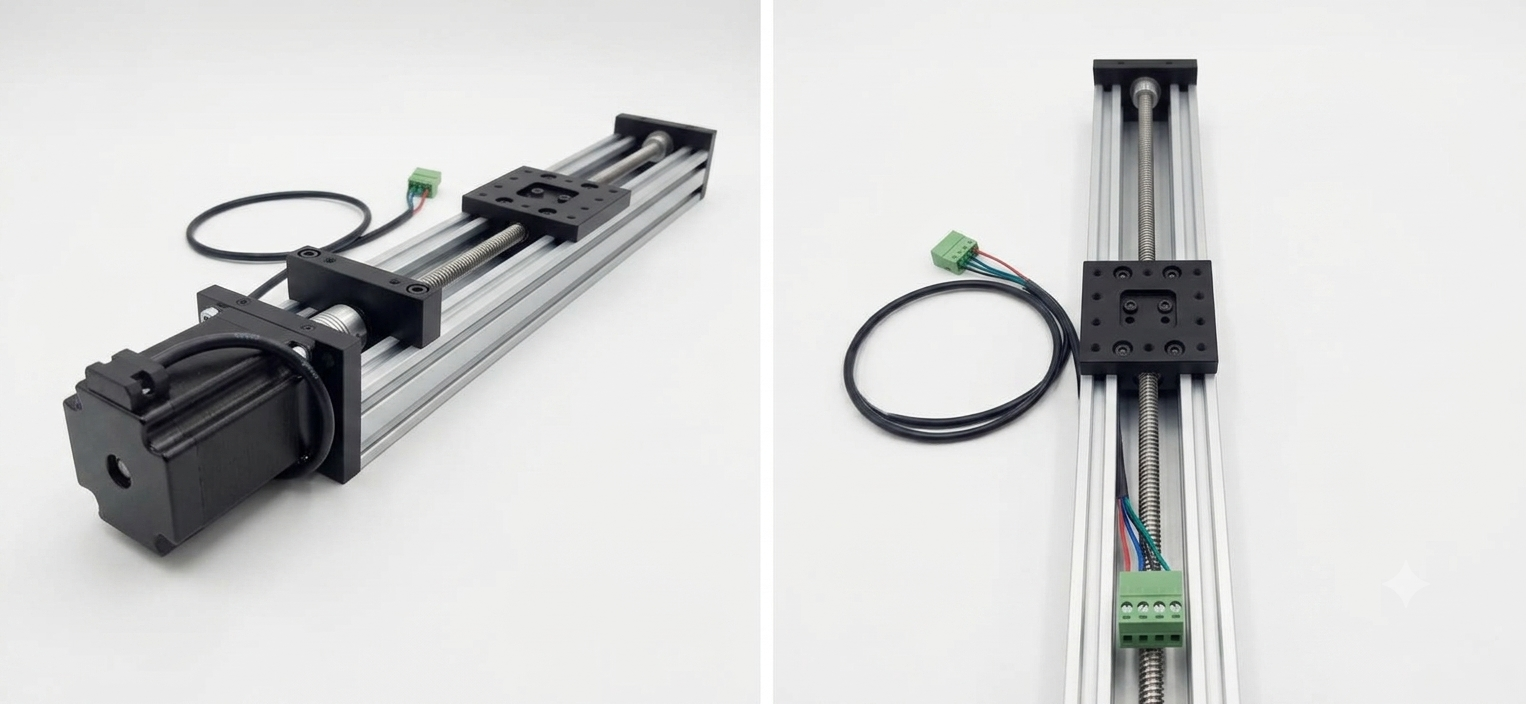

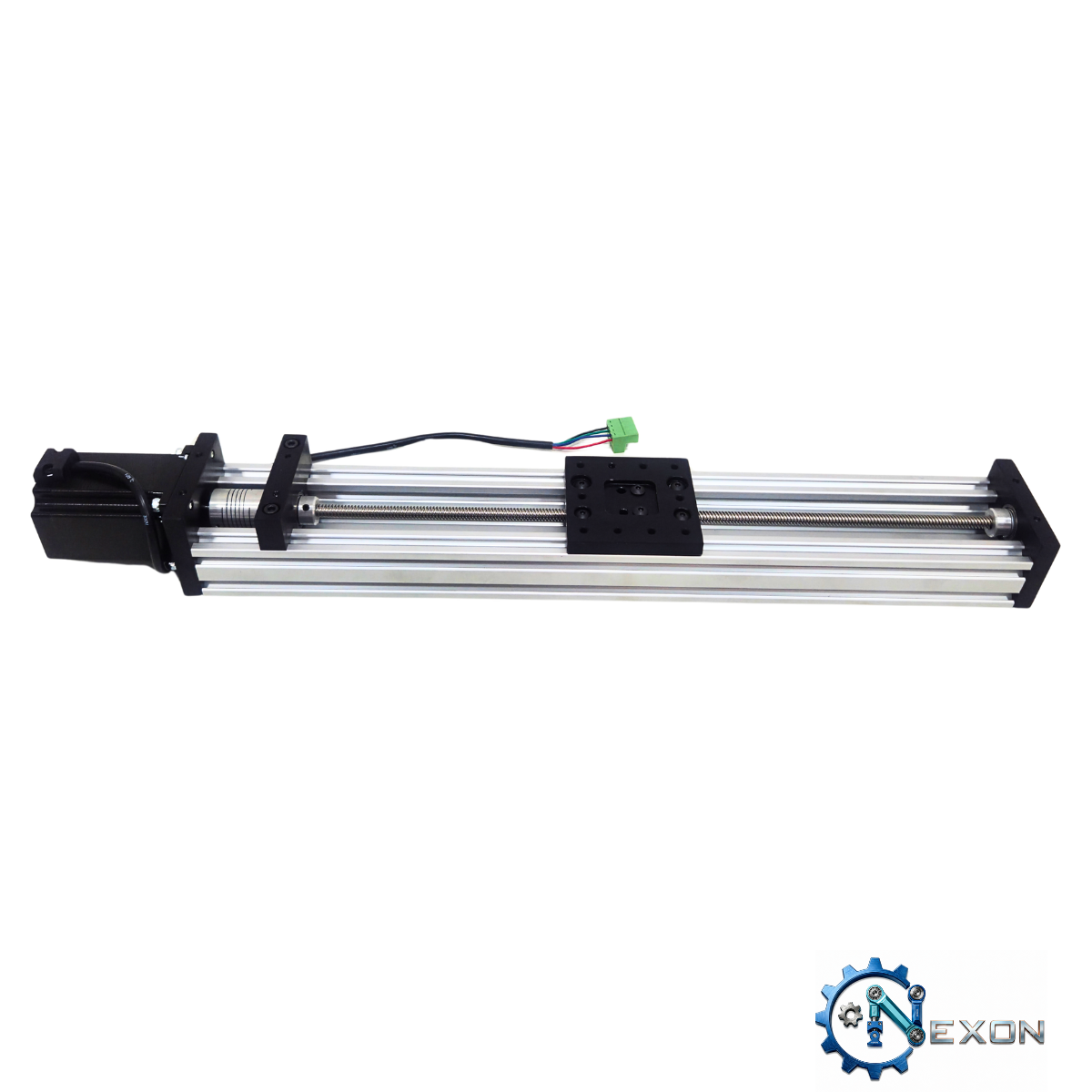

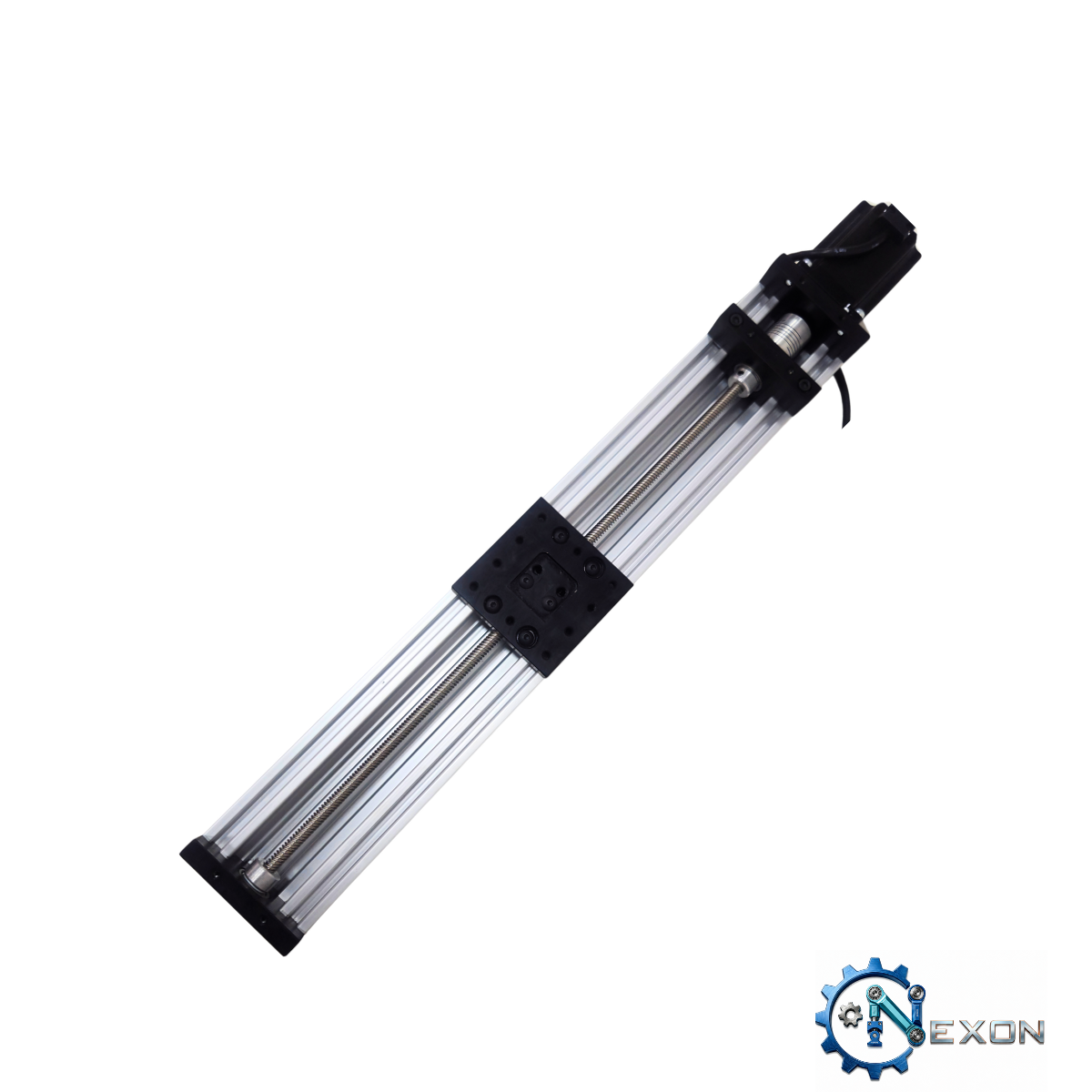

Lead Screw Linear Actuator is the solution for economical linear motions. That developed using C beam aluminum extrusion profile with advance design model.

It gives perfect finish and heavy structure quality to the actuator. This type Linear actuator runs with 8mm Leadscrew with Precise pitch for accurate motion.

Leadscrew actuator guide through heavy quality bearing wheel with proper alignment setting. this gives smooth linear motion for the load.

We have used Flexible coupling to connect the leadscrew with NEMA23 Stepper Motor. It gives appropriate connection and reduce risk of over load to the motor.

Stepper motor runs with step pulse input from the controller. It move 1.8 step angle. It comes from various Pulse per revolution settings.
