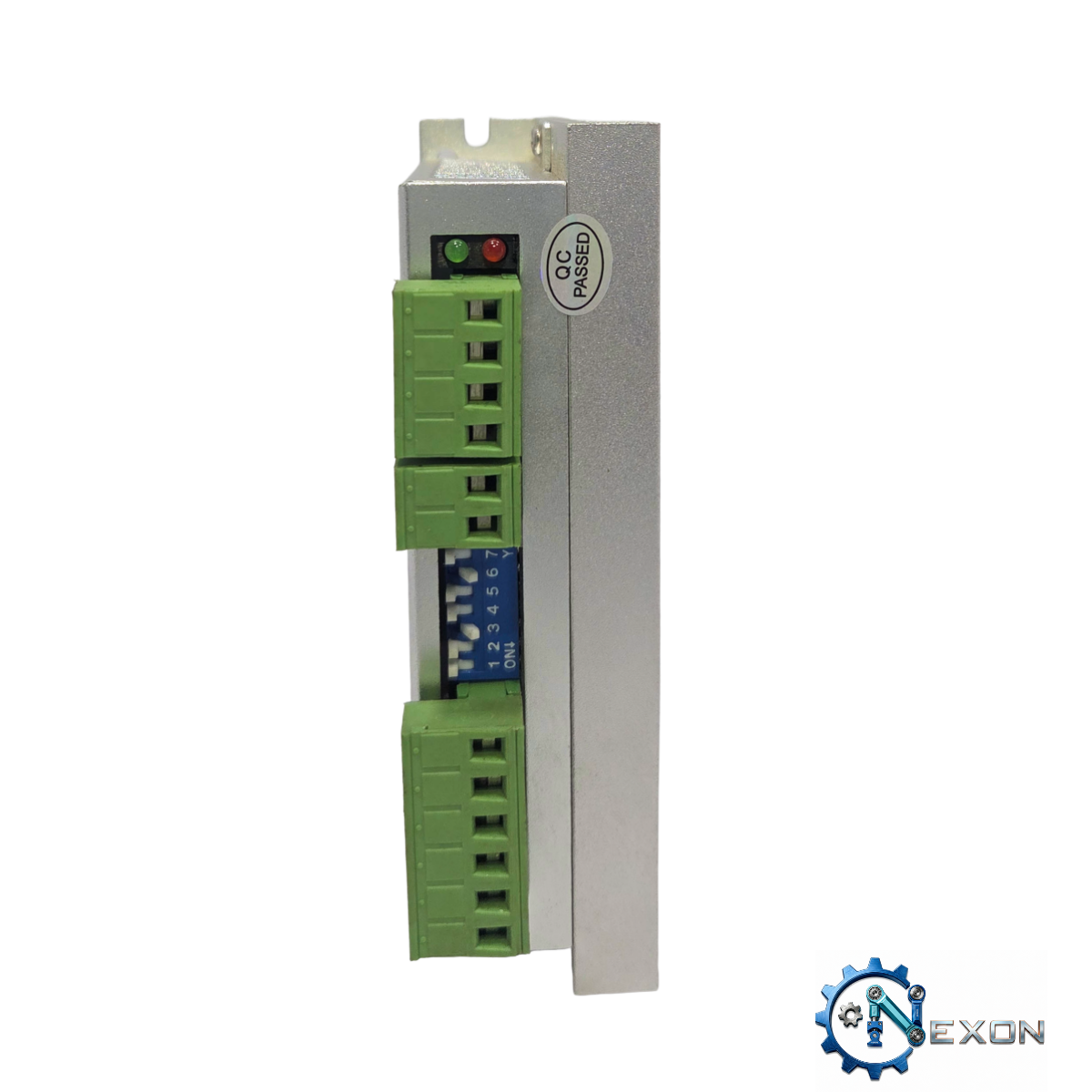

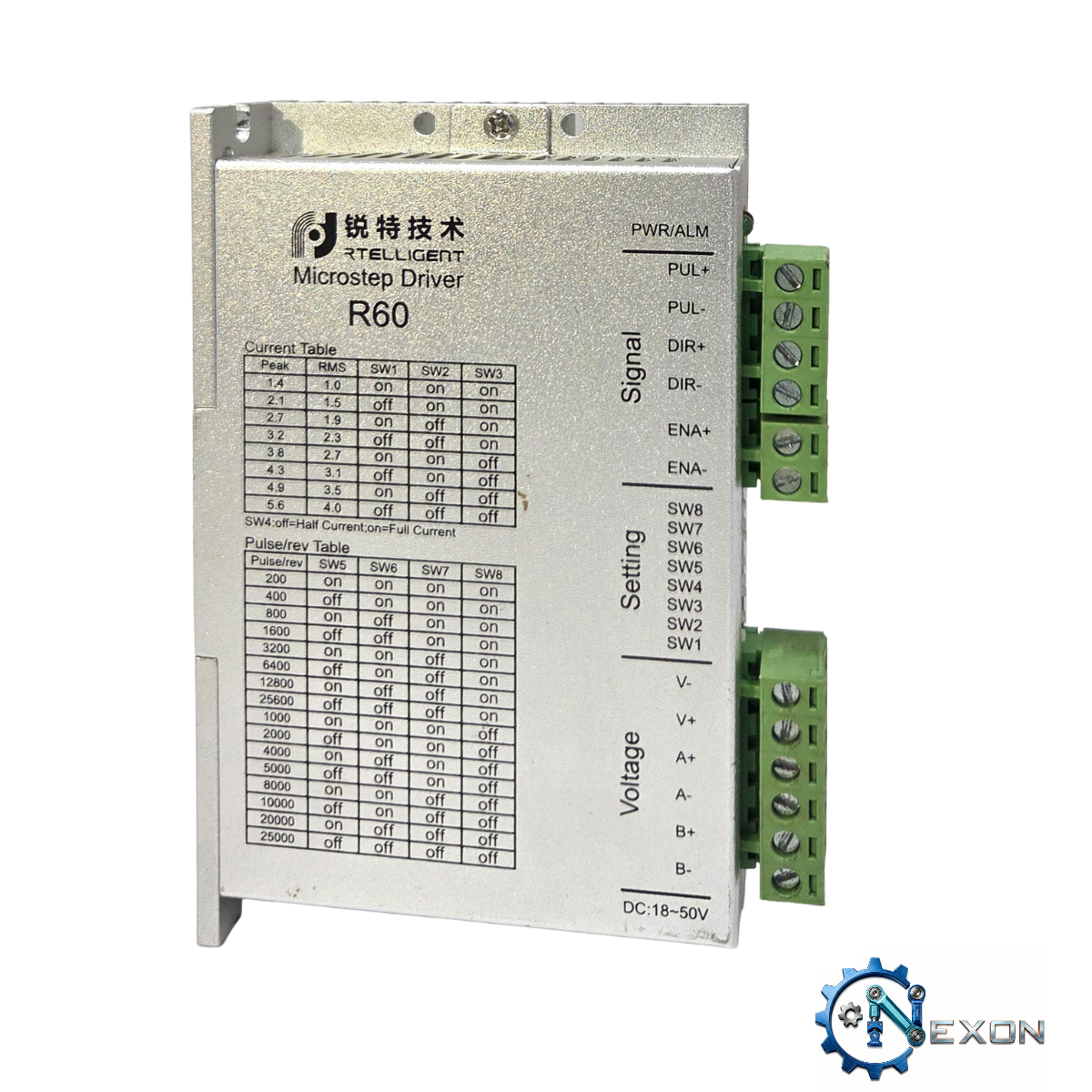

Stepper Motor Driver – R60 (for NEMA 23 Stepper Motor)

Specification	R60 Stepper Motor Driver
Product Type	Intelligent Microstep Driver
Model	R60
Input Voltage	DC 18–50V
Output Current	1.0–4.0A RMS
Peak Current	1.4–5.6A
Microstep Resolution	200–25,000 Pulse/Rev
Control Signals	PUL, DIR, ENA
Motor Connection	A+, A−, B+, B−
Current Setting	DIP Switch
Microstep Setting	DIP Switch
Motor Type	2-Phase Stepper Motor
Cooling	Natural cooling
Housing	Metal enclosure

Specification

R60 Stepper Motor Driver

Product Type

Intelligent Microstep Driver

Model

R60

Input Voltage

DC 18–50V

Output Current

1.0–4.0A RMS

Peak Current

1.4–5.6A

Microstep Resolution

200–25,000 Pulse/Rev

Control Signals

PUL, DIR, ENA

Motor Connection

A+, A−, B+, B−

Current Setting

DIP Switch

Microstep Setting

DIP Switch

Motor Type

2-Phase Stepper Motor

Cooling

Natural cooling

Housing

Metal enclosure

Description

R60 Stepper Motor Driver – Intelligent Microstep Driver

High-Performance Microstepping Driver for Industrial Stepper Motor Applications

The R60 Stepper Motor Driver is a high-performance microstepping driver designed to provide smooth, precise, and reliable control of stepper motors used in industrial automation and motion-control applications.

With a DC 18–50V power supply, adjustable motor current up to 4.0A RMS, and microstep settings up to 25,000 pulses/revolution, the R60 provides flexible motor control for applications requiring accurate positioning, smooth motion, and reduced vibration.

It is suitable for CNC machines, linear actuators, robotic systems, automation machinery, positioning systems, engraving machines, and other precision motion-control applications.

Key Features

Intelligent microstep stepper motor driver
DC 18–50V operating voltage
Adjustable motor current from 1.0A to 4.0A RMS
Peak current up to 5.6A
Microstep resolution up to 25,000 pulses/revolution
Multiple selectable pulse/revolution settings
Pulse and Direction control interface
Enable input for motor control
Smooth and stable motor operation
Helps reduce motor vibration and operating noise
Suitable for industrial automation applications
Compact metal housing for reliable installation

Additional information

Weight	0.3 kg
Dimensions	118 × 76 × 33 mm
