Description

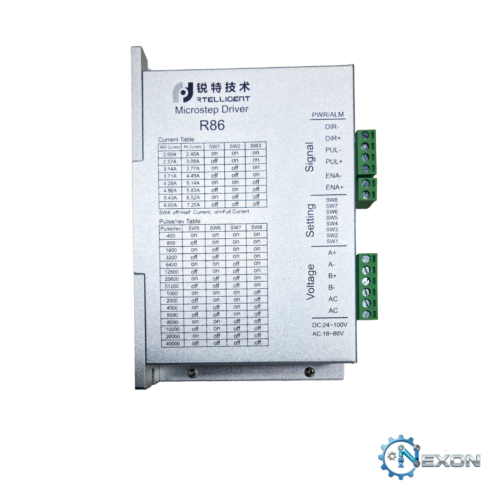

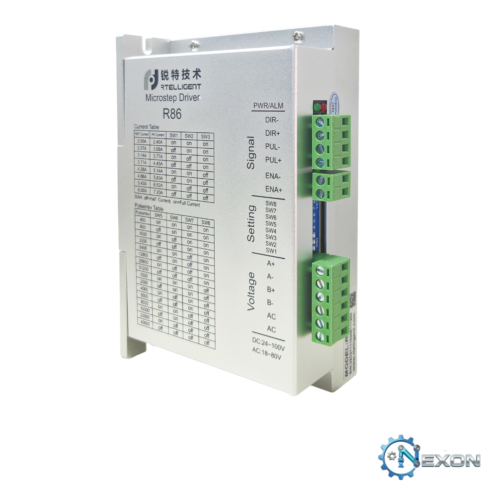

The R86 Stepper Motor Driver is a high-performance microstepping driver designed for high-current stepper motor applications requiring smooth motion, precise positioning, and reliable operation.

With a wide DC 24–100V / AC 18–80V input voltage range, adjustable motor current up to 7.20A, and microstepping capability up to 51,200 pulses/revolution, the R86 is suitable for demanding applications such as CNC machines, ball screw linear actuators, gantry systems, robotics, engraving machines, and industrial automation equipment.

Its flexible current and pulse/revolution settings allow the driver to be configured according to the motor and motion-control requirements.

Key Features

• High-current intelligent microstep driver
• DC 24–100V / AC 18–80V power input
• Output current settings up to 7.20A
• Multiple selectable motor-current settings
• Microstep resolution up to 51,200 pulses/revolution
• Pulse and Direction control
• Enable input for motor control
• Smooth and precise stepper motor operation
• Helps reduce motor vibration and mechanical resonance
• Wide voltage range for industrial applications
• Rugged metal enclosure
• Suitable for CNC, robotics and linear motion systems
